ICARUS - Gen 5.0

The ICARUS 3D Printer has been built by Filament Innovations since 2016. It is designed with no compromises in mind - from its water-cooled Typhoon High-Flow extrusion system, enclosed ballscrews, and closed-loop motors (just to name a few details), it is designed to perform and be the reliable 3D Printer your company demands. Priced fully equipped and shipped door to door at $31,000, the fifth generation ICARUS is built to perform.

pellet filament 3d printer logo filament innovations usa 3dprinting 3dprinter custom custom3dprinter icarus high flow filament printer filament innovations
pellet filament 3d printer logo filament innovations usa 3dprinting 3dprinter custom custom3dprinter extrusion system typhoon high flow

Extrusion System

The Typhoon High-Flow extrusion system is the heart of the ICARUS. Capable of putting out, nearly, 1kg of filament per hour on a 2.5mm nozzle, this system is the definition of "high-flow". All heatercores are abrasive filament ready as the nozzle is tool steel - available sizes are 0.6mm, 0.9mm, 1.2mm, 1.8mm, 2.5mm.

Dimensions (Yes, it fits through a door)

Machine Size: (W)54", (D)34", (H)76"

Print Area: (X)460mm, (Y)380mm, (Z)950mm

Weight: ~400lbs

pellet filament 3d printer logo filament innovations usa 3dprinting 3dprinter custom custom3dprinter dimensions icarus
pellet filament 3d printer logo filament innovations usa 3dprinting 3dprinter custom custom3dprinter linear motion

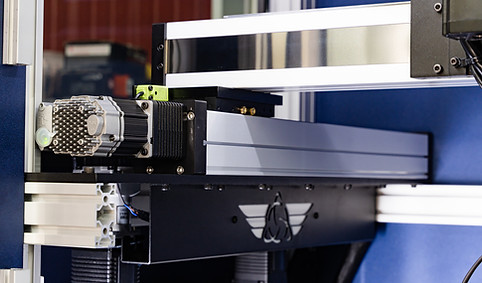

Linear Motion

For accuracy and safety, enclosed ballscrews are used on the X,Y, and Z axis of the entire machine. You won't find a belt on this machine. All of this, combined with genuine closed-loop motors and external drivers from LeadShine on the X and Y axis, ensure precise motion movement.

Electrical Requirements

The fifth generation ICARUS is powered by 110VAC, on a dedicated 15 amp circuit. Under the hood, you will find full breaker protection on all major electrical systems. Running the system is all genuine Duet3D products with a 2.4ghz WiFi connection, standard.

pellet filament 3d printer logo filament innovations usa 3dprinting 3dprinter custom custom3dprinter electrical requirements icarus
